homemade 50W Power Amplifier

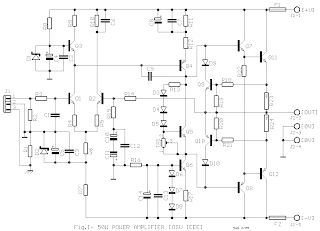

This simple audio power amplifier was originally designed for a circuit board workshop, conducted by the OSU IEEE Student Group. At the workshop, 20 participants each constructed this amplifier, by etching and drilling the single sided circuit board, soldering all components, and attaching a pre-built heatsink assembly with the output transistors. Three workshops were held between 1995 to 1996. Though the design is simple, these amplifiers have impressive performance, with a frequency response to approx 40 kHz, very low noise, reasonably fast slew rate, and approx 50 watts (true "RMS" power) with the proper +/- 40 volt unregulated power supply.
